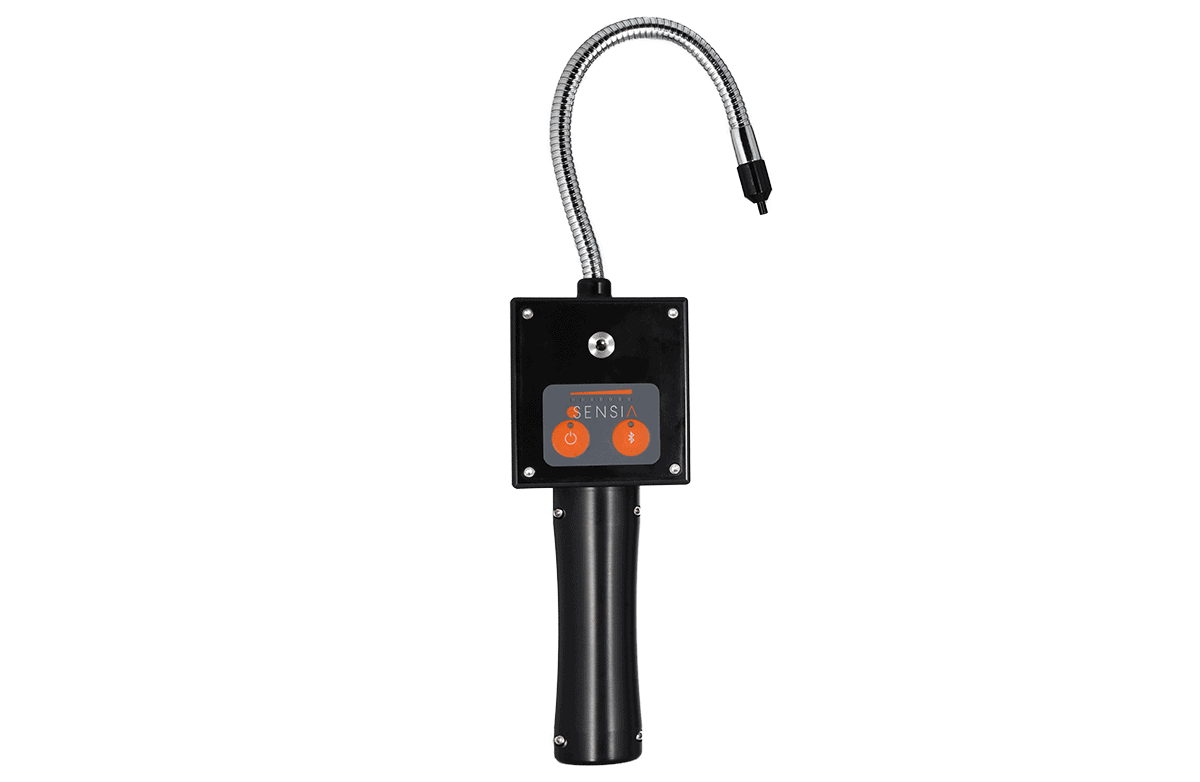

Gas Sniffer 4.0
Multi-function gas detector
SENSIA’s Gas Sniffer 4.0 measures the concentration of gases and automatically sends its measurements via Bluetooth. A user-friendly application, installed on a mobile phone or tablet, provides expanded in-field capabilities; gathering measurements, GPS location, photos and audios to generate reports at the moment. Maximize your Smart LDAR efficiency for Industry 4.0.
Sensor
| Target gases |
CH4, C3H8, CO2, C2H6 |
|
Measurement range |
0 to 1.5, 2.5, 5 and 100% volume |
|
Measurement resolution |
100 ppm |
|
Accuracy |
0.1% vol. or +/-5% for CH4 sensors |
|
Temperature Range (°C) |
-40 to 60 |
Sniffer
|
Temperature range |
See sensor’s details |
|
Maximum dimensions |
540 mm x 80 mm x 50 mm |
|
Weight |
675 g |
|
Connectivity |
Bluetooth 4.0 |
|
Battery |
2 x 10 hr duration |
|
Certifications |
EMC (EN 61326:2013)
ATEX II 3 G Ex nA II B T6 Gc IP 54 |
Sensor’s details
| Target gas | Measurement Range (% vol.) |
|---|---|
| CH4 | 0 to 1.5 |
| CH4 | 0 to 2.5 |
| CH4 | 0 to 5 |
| CH4 | 0 to 100 |
| C3H8 | 0 to 1.5 |
| C3H8 | 0 to 2.5 |
| CO2 | 0 to 1.5 |
| CH4+C2H6 | 0 to 2.5 |
| CH4+C2H6 | 0 to 5 |
| CH4+C2H6 | 0 to 100 |
Sensor
| Target gases |
CH4, C3H8, CO2, C2H6 |
|
Measurement range |
0 to 1.5, 2.5, 5 and 100% volume |
|
Measurement resolution |
100 ppm |
|
Accuracy |
0.1% vol. or +/-5% for CH4 sensors |
|
Temperature Range (°C) |
-40 to 60 |
Sniffer
|
Temperature range |
See sensor’s details |
|
Maximum dimensions |
540 mm x 80 mm x 50 mm |
|
Weight |
675 g |
|
Connectivity |
Bluetooth 4.0 |
|
Battery |
2 x 10 hr duration |
|
Certifications |
EMC (EN 61326:2013)
ATEX II 3 G Ex nA II B T6 Gc IP 54 |
Sensor’s details
| Target gas | Measurement Range (% vol.) |
|---|---|
| CH4 | 0 to 1.5 |
| CH4 | 0 to 2.5 |
| CH4 | 0 to 5 |
| CH4 | 0 to 100 |
| C3H8 | 0 to 1.5 |
| C3H8 | 0 to 2.5 |
| CO2 | 0 to 1.5 |
| CH4+C2H6 | 0 to 2.5 |
| CH4+C2H6 | 0 to 5 |
| CH4+C2H6 | 0 to 100 |
Sniffer app functionalities
Leak Detection & Repair
RedLook APP fusions Method 21 & Smart LDAR Automatic on-field leak reporting.
Sniffer app functionalities
MAIN FEATURES AND SPECIFICATIONS
Single control app designed to collect data and to generate reports
Human Interface
Control the software on a cell phone touchable screen
Communications
Sniffer communication with cellphone via Bluetooth and data transfered via Wifi
Positioning
Find the leak with a GPS coordinate
On-field Alarm Reporting
Metadata linked to survey for easy leaks tracking
Rugged System
Specially designed to operate reliably in harsh usage enviroments and conditions
Data on Cloud
Upload your reports with photos and voice notes
Well-Balanced Design
Ergonomic handle and flexible gooseneck to reach out of sight areas
